Phospholipid Analysis Techniques: Principles, Methods, and Applications

Phospholipids are a class of lipids that form the structural foundation of cell membranes. Each phospholipid molecule typically contains a glycerol backbone, two fatty acid chains, and a phosphate group linked to a polar head. This amphiphilic structure allows them to form bilayers, which are essential for cell compartmentalization.

Beyond their structural role, phospholipids are involved in numerous cellular processes:

• Signal transduction (e.g., phosphatidylinositol derivatives)
• Lipid mediator production (e.g., arachidonic acid release)
• Membrane trafficking and fusion
• Lipoprotein metabolism

Because of their central role in health and disease, studying phospholipids is crucial for understanding many physiological and pathological conditions.

Sample Preparation and Phospholipid Extraction

Accurate phospholipid analysis begins with proper sample preparation. The choice of method depends heavily on the sample type, matrix complexity, and intended analytical platform.

Common Biological Samples

Phospholipid studies often involve a range of biological materials:

• Blood Plasma and Serum: Rich in phospholipids like phosphatidylcholine (PC) and sphingomyelin (SM), plasma and serum are widely used in biomarker research. However, proteins and salts present can interfere with extraction and analysis if not properly removed.
• Tissues: Organs such as liver, brain, and heart have distinct phospholipid profiles, reflecting their specialized functions. Tissue homogenization must be thorough yet gentle to avoid artificial lipid degradation.
• Cultured Cells: Cell-based models offer controlled environments for studying lipid metabolism. Care must be taken during cell lysis to preserve the native lipid composition.

Sample handling is critical—lipid oxidation and enzymatic degradation can occur rapidly, so samples should be processed under cold conditions and stored at -80°C when possible.

Organic Solvent Extraction

Efficient extraction of phospholipids relies on disrupting lipid-protein and lipid-lipid interactions without selective loss. Two classical solvent systems dominate:

• Bligh-Dyer Method: Utilizes a mixture of chloroform, methanol, and water (1:2:0.8, v/v/v initially) to partition lipids into the organic phase. It's particularly effective for aqueous biological samples like plasma or cell suspensions.
• Folch Method: Employs a 2:1 chloroform-methanol ratio, favoring higher lipid recovery from tissues. Subsequent addition of water or saline induces phase separation, concentrating lipids into the lower organic layer.

Both methods are simple but require careful phase collection to avoid contamination. Methanol acts to denature proteins, aiding in the release of bound lipids, while chloroform dissolves the hydrophobic lipid components.

Solid-Phase Extraction (SPE) vs. Liquid-Liquid Extraction (LLE)

• SPE: Lipid classes can be selectively retained and eluted based on their polarity by using tailored stationary phases. For instance, silica cartridges can separate neutral lipids from phospholipids.
• LLE: Classic partitioning methods, though less selective than SPE, are still widely used due to their simplicity and scalability.

SPE often offers cleaner extracts and better reproducibility, making it advantageous when downstream applications like LC-MS/MS demand low background noise.

Internal Standards and Quality Control

Internal standards are essential for correcting variations during sample preparation, extraction, and instrumental analysis. Ideally, an internal standard closely resembles the target analyte in structure and behavior but is absent in the natural sample.

Key considerations include:

• Timing of Addition: Internal standards should be added at the very beginning of sample preparation to account for all processing steps.
• Concentration Range: Should match the expected concentration of endogenous phospholipids for accurate quantification.
• Quality Control Measures: Include running blank samples, spike-recovery experiments, and technical replicates to monitor extraction efficiency, matrix effects, and instrument stability.

Proper internal standard use transforms a qualitative phospholipid profiling experiment into a robust, quantitative analytical method.

Phospholipid Separation and Detection Techniques

Thin-Layer Chromatography (TLC)

TLC is a planar chromatography technique where lipids are spotted onto a silica-coated plate. The plate is developed in a solvent system, allowing lipid classes to migrate at different rates based on polarity. After development, lipids are visualized using dyes like iodine vapor, phosphomolybdic acid (PMA), or copper sulfate.

Strengths

• Simplicity: TLC does not require advanced instrumentation.
• Cost-effective: Ideal for rapid screening or preliminary class-level separation.
• Class-level Profiling: Can distinguish broad categories such as phosphatidylcholine (PC) from phosphatidylethanolamine (PE) or cardiolipin.

Limitations

• Limited Resolution: Cannot distinguish lipid species with similar structures or isomers.
• Semi-Quantitative: Requires densitometry or elution followed by secondary analysis for quantification.
• Low Sensitivity: Detection limits are insufficient for trace lipid analysis, making TLC less suitable for low-abundance phospholipids.

Pre-separation of lipids using thin-layer chromatography (TLC) followed by high-resolution mass spectrometry (MS) enables improved identification and quantification of complex lipid species. (Hofmann, Tommy, et al., 2021)

High-Performance Liquid Chromatography (HPLC/UPLC)

Separation Modes

• Normal-Phase HPLC (NP-HPLC): Separates phospholipids based on headgroup polarity. Effective for class-level resolution.
• Reverse-Phase HPLC (RP-HPLC): Separates based on fatty acid chain length and degree of saturation. Useful for species-level separation within a class.

Detectors and Their Utility

• UV Detectors: Limited by low UV absorbance of most phospholipids; mainly applicable to phospholipids with conjugated systems.
• ELSD (Evaporative Light Scattering Detector): Universal but nonlinear response; suitable for detecting non-volatile lipids.
• CAD (Charged Aerosol Detector): Improved sensitivity and reproducibility compared to ELSD, particularly valuable for gradient separations.

Applications

HPLC techniques are commonly used to:

• Distinguish phospholipid classes (e.g., PC, PE, PI)
• Separate molecular species within a class
• Quantify phospholipids when used with internal standards

UPLC, with smaller particle sizes and higher pressures, offers faster analysis and better resolution, making it well-suited for high-throughput studies.

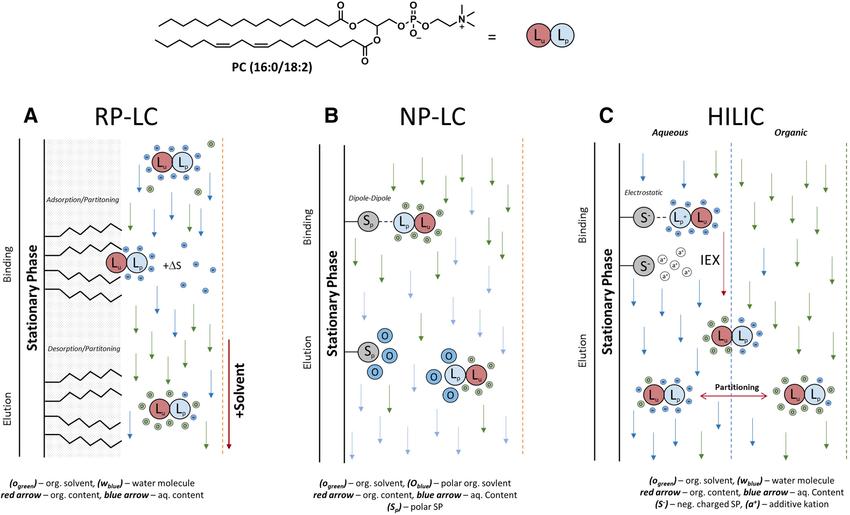

Comparison of lipid separation principles in RP-LC, NP-LC, and HILIC based on hydrophobic, dipole–dipole, and electrostatic interactions respectively (Lange, Mike, et al., 2019).

Gas Chromatography-Mass Spectrometry (GC-MS)

GC-MS is primarily used for analyzing fatty acid composition, not intact phospholipids. To apply this method, phospholipids must first be hydrolyzed to release fatty acids, which are then derivatized—typically into fatty acid methyl esters (FAMEs)—to improve volatility and thermal stability.

Advantages

• High Resolution: GC provides excellent separation of individual fatty acids.
• Well-Established Libraries: Mass spectral libraries aid in accurate identification.

Disadvantages

• Destructive Process: Information about the intact phospholipid molecule (head group and position of fatty acids) is lost.
• Complex Derivatization: Involves several additional steps that may introduce variability or loss.

GC-MS remains useful when the goal is to understand the fatty acid profile within phospholipids, such as studying dietary effects or membrane fluidity.

Liquid Chromatography-Tandem Mass Spectrometry (LC-MS/MS)

Key Technologies

• Electrospray Ionization (ESI): Enables soft ionization of phospholipids, preserving molecular ions for intact analysis.
• Tandem MS (MS/MS): Provides fragmentation patterns used to determine head groups and fatty acid composition.

Quantitative Modes

• MRM (Multiple Reaction Monitoring) and SRM (Selected Reaction Monitoring) allow for highly specific and sensitive quantification of predefined phospholipid species.

Advantages

• High Sensitivity and Specificity: Can detect low-abundance lipids in complex samples.
• Isomer Distinction: MS/MS fragmentation can differentiate positional or structural isomers.
• Versatility: Supports both targeted (quantitative) and untargeted (profiling) workflows.

LC-MS/MS is currently the gold standard for detailed phospholipid analysis in both clinical and research settings. It enables:

• Accurate quantification of individual lipid species
• Identification of disease-associated lipid alterations
• Structural elucidation, including double bond position and stereochemistry (with advanced techniques)

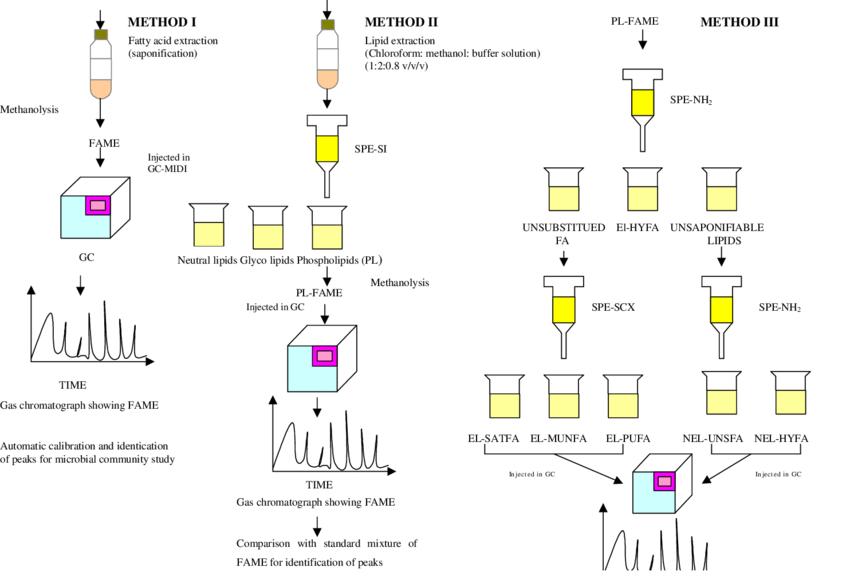

Flow chart for extraction and detection of phospholipid fatty acids using different methods (Kaur, Amrit, et al., 2005).

Shotgun Lipidomics (Direct Infusion MS)

In this method, lipid extracts are directly infused into a mass spectrometer without prior chromatographic separation. Ions are generated via ESI and analyzed using high-resolution MS and MS/MS.

Benefits

• High Throughput: Capable of profiling hundreds of lipid species in minutes.
• Minimal Sample Handling: Fewer steps reduce the risk of loss or degradation.

Drawbacks

• Matrix Effects: Ion suppression from co-eluting species can skew quantification.
• Limited Isomer Resolution: Without chromatographic separation, distinguishing closely related isomers or isobars is difficult.

Shotgun lipidomics is best suited for large-scale comparative studies or time-course experiments, where speed outweighs the need for detailed separation.

Metabolomics Platforms and Multidimensional MS

Targeted vs. Untargeted Lipidomics

• Targeted Lipidomics Analysis: Focuses on known lipid species; offers high sensitivity and precision.
• Untargeted Lipidomics Analysis: Explores the lipidome broadly, enabling discovery of novel or unexpected lipids.

Multiplatform Strategies

Combining various platforms (e.g., LC-MS with ion mobility, GC-MS with HPLC) provides complementary information. For example:

• LC-MS excels at identifying intact lipid species.
• GC-MS offers detailed fatty acid profiles.
• Ion mobility spectrometry adds another separation dimension based on molecular shape and charge.

Such comprehensive workflows are increasingly used in systems biology and biomarker discovery, helping to link lipid metabolism with disease states like diabetes, cancer, and neurodegeneration.

Phospholipid Quantification and Data Processing

Absolute vs. Relative Quantification

Phospholipid quantification can be approached in two main ways:

Absolute Quantification involves calculating the actual concentration of each phospholipid species, typically expressed in units like ng/mL or μmol/L. This requires:

• Well-characterized internal standards
• Standard curves using known concentrations
• Correction for recovery and instrument response

Relative Quantification compares the abundance of a lipid species across different samples or conditions. While less precise, it is valuable for screening large datasets or detecting trends in lipid profiles.

Relative quantification is commonly used in untargeted lipidomics, whereas absolute quantification is favored in clinical studies and targeted biomarker validation.

Internal Standards, External Standards, and Calibration Curves

Internal Standards (IS) are essential for correcting variations during extraction, ionization, and detection. A good IS should:

• Be chemically similar to the analyte (e.g., labeled analogs like deuterated PC or PE)
• Not be present in the native sample
• Show consistent behavior during sample preparation and LC-MS/MS analysis

External Standards consist of pure phospholipid species used to construct calibration curves. By plotting peak intensity against known concentrations, one can derive a response factor and apply it to unknowns.

Calibration Curve Considerations:

• Use at least 5–7 concentration points
• Validate linearity (typically R² > 0.99)
• Regularly assess curve stability across batches

Together, these methods enable precise quantification while accounting for analytical variability.

Data Normalization and Batch Effect Correction

Even in well-controlled workflows, technical variations can obscure biological signals. Normalization and correction techniques help minimize such noise.

Common Normalization Methods:

• Total Ion Current (TIC): Adjusts each sample based on its total signal intensity
• Internal Standard-Based: Uses IS response to scale the intensity of target lipids
• Class-Based Normalization: Normalizes within each lipid class to highlight specific changes

Batch Effect Correction:

• Use of quality control (QC) samples across runs
• Statistical tools like ComBat, LOESS smoothing, or RUV (Remove Unwanted Variation) for correcting inter-batch variability

Proper normalization ensures comparability across samples and improves statistical power in downstream analyses.

Software Tools and Lipid Databases

Handling phospholipid data, especially from high-resolution MS, requires specialized software for:

• Peak detection
• Lipid identification
• Quantification
• Statistical analysis

Popular Tools Include:

• LipidSearch (Thermo): Matches MS/MS spectra to known lipid structures
• Lipid Data Analyzer (LDA): Offers class-specific quantification with flexible workflows
• MS-DIAL: Open-source, supports untargeted lipidomics with a large built-in library
• Skyline: Widely used for targeted MRM/SRM workflows

Lipid Databases:

• LIPID MAPS: A comprehensive lipid classification and annotation resource
• HMDB (Human Metabolome Database): Contains lipid metabolites relevant to human health
• LipidBlast: MS/MS spectral library for lipid identification

Effective use of these tools accelerates data interpretation, supports reproducibility, and facilitates biological insight extraction.
