How Saturated Fatty Acid Structure Affects GC Separation and Quantitative Accuracy

Introduction

Gas chromatography of fatty acid methyl esters (FAMEs) is a staple in translational research, from nutrition and metabolic disease to drug‑mechanism studies. Getting the separation right determines whether you can trust differences between cohorts or treatment arms. Structure—especially whether a fatty acid is saturated or contains double bonds—drives volatility, interactions with the stationary phase, and ultimately retention time and resolution. This guide explains how saturated versus unsaturated structure affects GC behavior, how to choose columns and temperature programs, what derivatization routes are most defensible, and how to control quantitative error so your results transfer.

For biochemical context on fatty acid classes and pathways, see the internal primer Fatty acids and metabolism. We focus on saturated vs unsaturated effects, FAME workflows aligned to AOAC/AOCS/ISO practice, and practical steps that improve quantitative accuracy. By the end, you will know which parameters to adjust to balance resolution, throughput, and reproducibility—and how to document decisions for transparent reporting.

Key Takeaways

• Saturated fatty acid structure increases boiling point and retention; unsaturation lowers effective carbon number and elutes earlier on many phases.
• On highly polar cyanopropyl columns (HP‑88/CP‑Sil 88/SP‑2560), cis/trans and positional isomers are better resolved than on wax or non‑polar phases.
• Use Equivalent Carbon Number/Length (ECN/ECL) with standard mixes to predict elution order and flag coelution risks.
• Match column length/film to your resolution vs speed needs; validate with system suitability before adopting fast programs.
• Choose derivatization (base vs acid) based on matrix and free fatty acid content; mitigate PUFA artefacts without compromising saturated FA quantitation.
• Quantitation depends on internal standards, matrix‑matched calibration, RT windows, and stable carrier‑gas flow.
• Cross‑confirm critical findings with LC‑MS/MS and escalate to GC×GC for highly complex matrices.

Structure–Retention Fundamentals in GC Separation of Fatty Acids

Carbon Chain Length, Volatility, and Retention

For FAMEs, retention generally increases with carbon number because longer chains have higher boiling points and stronger dispersion interactions. A C22:0 methyl ester elutes later than C16:0 under identical conditions. Short‑chain FAMEs (C4–C8) are more volatile, require low initial oven temperatures, and often need specialized injection and focusing conditions to avoid breakthrough. In this context, the saturated fatty acid chain length is the primary driver of elution order on non‑polar phases.

Saturation vs. Unsaturation on Non‑polar and Polar Phases

Relative to an identical carbon number, adding one or more double bonds bends the chain, lowers intermolecular interactions, and reduces retention. On non‑polar phases, separation largely follows carbon number with modest sensitivity to saturation. On mid‑ and highly polar cyanopropyl phases, unsaturation creates larger retention shifts, enabling discrimination among cis/trans and positional isomers alongside the saturated species. Vendor application notes document that cyanopropyl columns (HP‑88/CP‑Sil 88/SP‑2560 families) are preferred when isomeric detail matters, particularly for regulatory trans‑fat determinations and complex lipidomes. See the overview on FAME column selection from Agilent (2024) and related materials in the Phenomenex GC product guide (2025).

According to the Agilent overview of GC column selection for traditional and fast FAME analysis (2024), highly polar cyanopropyl phases consistently outperform wax phases for cis/trans resolution in complex mixes, while fast‑selectivity variants can shorten run time with acceptable trade‑offs when system suitability criteria are met.

Equivalent Carbon Number/ECL as Identity and Coelution Checks

ECN/ECL provides a simple retention predictor that accounts for double bonds. A practical form is:

ECN ≈ CN − n × Δ

where CN is carbon number, n is the number of double bonds, and Δ is an empirically determined penalty (≈1.8–2.2 depending on column and program). Thus, for the chemical structure of a saturated fatty acid like C18:0 (n=0), ECN ≈ 18; for C18:1, ECN ≈ 16–16.2; for C18:2, ECN ≈ 14–14.4—predicting earlier elution for unsaturates. Use standard FAME mixes to calibrate Δ on your system. ECN trends help spot potential coelutions (e.g., a long monounsaturate overlapping a shorter saturated fatty acid) so you can adjust the program or column. See Agilent FAME application notes (2024–2025) discussing ECN ordering and the Phenomenex GC guide for background on retention behavior.

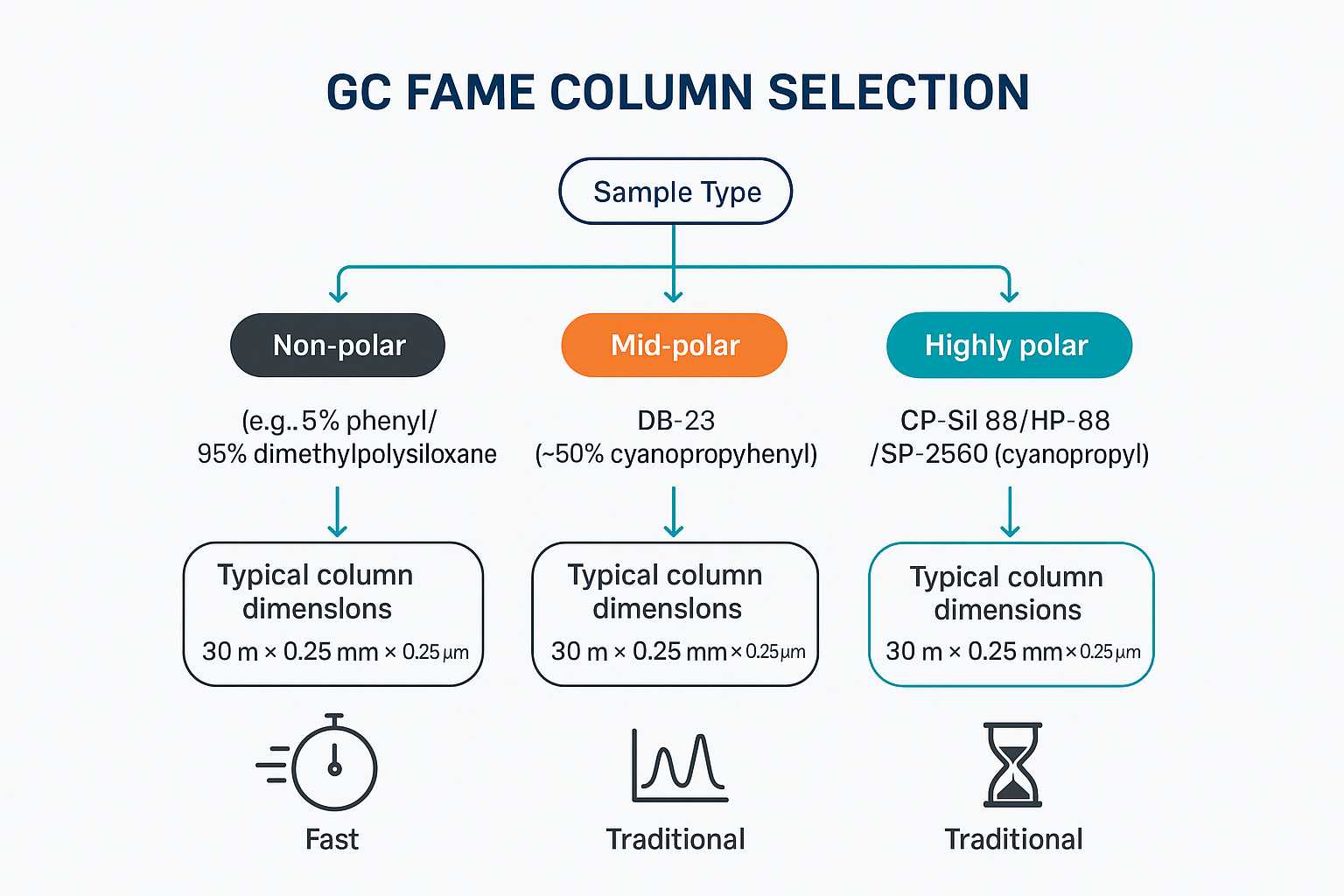

Column Selection and Temperature Programs for FAMEs

Non‑polar vs. Mid/Highly Polar Columns (Carbowax, DB‑23, CP‑Sil 88)

• Non‑polar (e.g., 5% phenyl/95% dimethylpolysiloxane): Robust generalists; elution mostly by carbon number. Limited isomer selectivity. Useful for routine profiles where isomer details are secondary.
• Mid‑polar (DB‑23, ~50% cyanopropylphenyl): Improved sensitivity to unsaturation; good for general FAMEs when cis/trans resolution demands are moderate.
• Highly polar (CP‑Sil 88/HP‑88/SP‑2560): Best for resolving cis/trans and positional isomers with saturated anchors; commonly specified for regulatory and complex samples.

For a concise comparison, see the Phenomenex Zebron columns overview and the Agilent Select FAME column resources detailing application‑specific selectivity.

Matching Column Length/Film to Resolution and Throughput

• High‑resolution regimes often use 100–120 m cyanopropyl columns (0.25 mm ID, ~0.20–0.25 µm film). Expect runtimes of roughly one hour for 37‑FAME standards when programmed conservatively.
• Faster methods may deploy 60–90 m cyanopropyl columns or specialized fast‑selectivity columns in the 20–30 m range. Validate that critical pairs remain baseline‑resolved via system suitability before adopting shorter columns or steeper ramps.

Agilent's fast FAME notes (2024–2025) show that with optimized ramps and hydrogen carrier, acceptable resolution of critical pairs is achievable in under 48 minutes in many cases. Always verify on your matrix.

Temperature Programs for Short‑, Medium‑, and Long‑Chain FAMEs

Representative programming strategies (verify on your system and column; cite or adapt from vendor notes):

Notes: Combine with constant‑flow carrier (H2 for speed, He for robustness). Confirm critical pair resolution with a 37‑FAME standard. For examples of fast programs and selectivity trade‑offs, see Agilent's FAME application notes (2024–2025) and slide deck on column selection (2024).

Derivatization Workflows and Reagent Choices (AOAC/AOCS)

Two‑Step Base/Acid Protocols and One‑Step Variants

Derivatization converts free and esterified fatty acids to their methyl esters for GC. Two‑step base/acid approaches (e.g., sodium methoxide followed by acid quench) efficiently transesterify glycerolipids while minimizing acyl migration. One‑step acid methods (e.g., BF3‑MeOH or methanolic HCl) handle free fatty acids and stubborn matrices but require care to avoid PUFA artefacts. AOCS method families (e.g., Ce 1‑62, Ce 1h‑05) and related AOAC/ISO standards provide validated frameworks; specific conditions are within the standards. For a concise overview of single‑step methylation options and caveats, see the Sigma‑Aldrich technical article on FAME GC workflows.

Acid‑ vs. Base‑Catalyzed Methylation: Yield and Artefacts

• Base catalysis: High yields for TAGs/PLs; may underperform with high free fatty acid content; generally milder toward PUFAs.
• Acid catalysis: Broad coverage (FFAs included); risk of double‑bond migration/oxidation if overheated or prolonged; include antioxidants and control exposure to oxygen and light.

Matrix Suitability Matrix

Use this matrix as a decision aid; always run matrix‑matched recovery checks and include internal standards to confirm completeness and absence of artefacts.

Choose based on matrix composition and analytical goals, then qualify with recovery studies and internal standards.

• AOAC 996.06 — total‑fat/FAME transesterification for foods (base methanolysis followed by BF3‑MeOH); suited to complex food matrices and cis/trans profiling (see AOAC 996.06 guidance via Agilent application notes).
• AOAC 969.33 — FAME preparation for edible oils (acid‑catalyzed BF3 variants; applied when FFAs present).
• AOCS Ce 1h‑05 / Ce 1j‑07 — validated routes for vegetable oils and unknown/ dairy‑containing fats (base→acid workflows) (AOCS methods).
• ISO 12966‑2/12966‑4 — GC and sample preparation standards for fatty acids (refer to ISO 12966 catalog) and method selection.

Protecting PUFAs While Preserving Saturated FA Quantitation

Mitigation tactics include oxygen‑free headspace, BHT or similar antioxidants, lower reaction temperatures or shorter times, and immediate cold storage. Cross‑check yields and artefacts using standard mixes and replicate controls. Definitions and context for FAMEs are summarized in the internal primer What is FAME?.

Disclosure: Creative Proteomics is our product. Platforms at Creative Proteomics support validated FAME workflows with standardized reporting across diverse matrices.

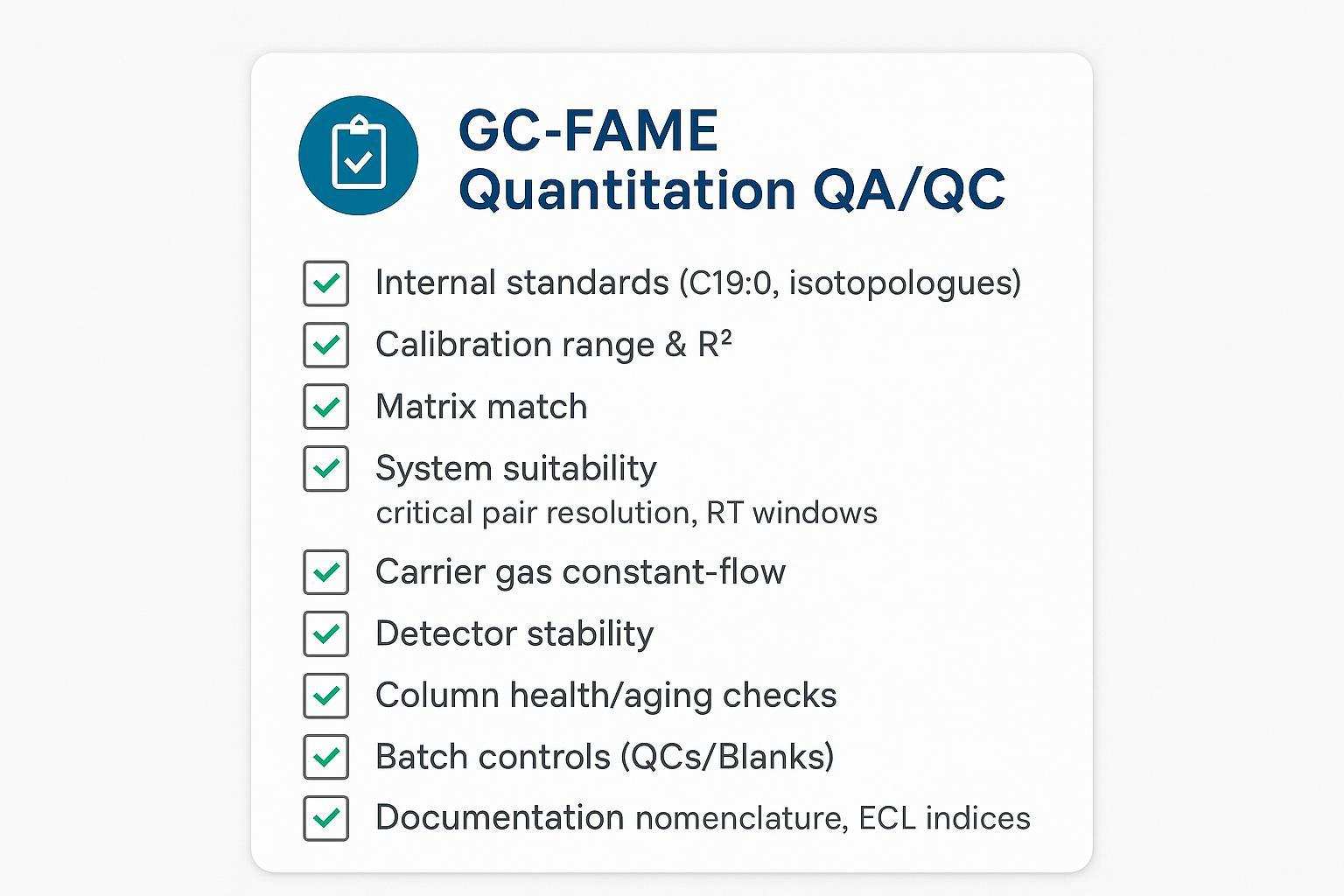

Quantitative Error Control and QA/QC

Internal Standards, Calibration Ranges, Matrix Matching

• Internal standards: Use odd‑chain FAMEs (e.g., C19:0) and, where feasible, isotopically labeled analogs. Spike before extraction if quantifying FFAs; otherwise before derivatization for glyceride‑rich samples.
• Calibration: Multi‑point (≥5 levels) spanning expected ranges; target R² ≥ 0.998 with back‑calculated residual checks. Include low‑level points if reporting trace species.
• Matrix match: Prepare calibration in representative matrices (oils, plasma, tissue extracts) to correct for recovery and response differences. Confirm identities with GC‑MS for uncertain peaks. For detector options and fundamentals, see the GC‑MS overview.

System Suitability, RT Windows, Carrier Gas and Flow Control

Set system suitability before each batch: baseline resolution for defined critical pairs; RT alignment within predetermined windows using a 37‑FAME standard; stable detector response (e.g., FID). Use constant‑flow carrier control; hydrogen can shorten runtime with maintained selectivity on fast‑optimized columns, while helium offers robustness. Agilent resources (2024–2025) detail fast vs traditional programs and suitability thresholds.

Mitigating Coelution, Column Aging, and Throughput Constraints

• Coelution: Apply ECN/ECL predictions; adjust ramp rates or switch to a more selective cyanopropyl column when critical pairs overlap.
• Column aging: Track tailing factors and resolve loss on a control mix; trim inlets and replace liners regularly; consider column refresh when performance drifts.
• Throughput: Validate shorter columns or steeper ramps only after proving critical pair resolution with suitability criteria. Fast FAME methods illustrate acceptable compromises when properly verified.

Integration with Lipidomics Workflows

GC‑FAME Profiling with LC‑MS/MS Confirmation

Use LC‑MS/MS MRM as an orthogonal approach for confirmation and for analytes poorly handled by GC (e.g., very short chains or thermally labile species). Shimadzu application notes (2024) show simultaneous quantification of free fatty acids in plasma/serum with delay‑column strategies to minimize contaminants. The combination of GC‑FID quantitation and LC‑MS/MS confirmation improves confidence in assignments.

Standardized Reporting and Nomenclature for Reproducibility

Adopt consistent nomenclature (e.g., C18:0; C18:1n‑9), report retention time windows, ECN/ECL indices, calibration models, and QC outcomes. Provide data dictionaries so downstream analysts can merge GC‑FAME with other lipidomics modalities. For broader study design choices that affect reporting depth, compare untargeted vs targeted lipidomics and consider shotgun lipidomics best practices for complementary coverage.

• Untargeted vs targeted: see Untargeted vs. targeted lipidomics.
• Shotgun guidance: see Shotgun lipidomics best practices.

When to Escalate to GC×GC for Complex Matrices

Escalate to GC×GC when 1D GC cannot baseline‑resolve critical pairs despite optimized columns and programs—common in complex food oils, environmental matrices, or when separating multiple cis/trans and positional isomers simultaneously. Two‑dimensional separation increases peak capacity and pattern recognition. For foundational GC concepts and detector options, see the GC‑MS overview.

Conclusion

Saturated fatty acid structure raises retention relative to unsaturates with the same carbon number; on cyanopropyl columns this difference becomes a powerful lever for resolving isomers while anchoring quantitative accuracy. Choose column chemistry and dimensions to match resolution needs, then tune the temperature program by chain‑length bands. Select derivatization based on matrix and free‑acid content, protecting PUFAs without sacrificing saturated FA quantitation. Lock down quantitation with internal standards, matrix‑matched calibration, system suitability, and stable carrier‑gas control. When complexity exceeds 1D GC capacity, confirm with LC‑MS/MS or escalate to GC×GC.

Actionable steps:

• Use ECN/ECL with a 37‑FAME standard to set RT windows and flag coelutions.
• Validate critical pair resolution on cyanopropyl columns before adopting fast programs.
• Align derivatization to matrix; include antioxidants and oxygen control for PUFA‑rich samples.
• Implement batch‑level suitability and matrix‑matched calibration with documented acceptance criteria.
• Cross‑verify uncertain identities via GC‑MS or LC‑MS/MS; reserve GC×GC for the toughest matrices.

FAQs

References:

1. Härtig, Claus. "Rapid identification of fatty acid methyl esters using a multidimensional gas chromatography–mass spectrometry database." Journal of Chromatography A 1177.1 (2008): 159–169.
2. Quehenberger, O., Armando, A. M., Brown, A. H., Milne, S. B., Myers, D. S., McLaughlin, H. V., Russell, S. M., McDonald, W. H., Sapp, D. A., Bowden, J. A., Deming, B. A., & Dennis, E. A. "High sensitivity quantitative lipidomics analysis of fatty acids in biological samples by gas chromatography–mass spectrometry." Journal of Lipid Research 52.11 (2011): 1995–2005.
3. Ichihara, Kenichi, and Yuko Fukubayashi. "Preparation of fatty acid methyl esters for gas–liquid chromatography." Journal of Lipid Research 51.3 (2010): 635–640.
